Automatic Lab Spray Dryer with 220V-480V Voltage and 3.5kw Power for Laboratory Use

Place of Origin : Jiangsu, China

Brand Name : Welldone

MOQ : 1

Price : $3,300-3,600

Voltage : 220V-480V (TBD)

Power : 3.5kw

Dimensions : 650×500×1550mm

Weight : 120kg

Heating Method : Electric Heating

Material : SUS304, SUS316L

Evaporation Capacity : 1kg/h

Air Inlet Temperature : 30~300℃

Core Components : Pump, Gear, Motor, PLC

Minimum Liquid Volume : 20-30ml

Noise Level : <50db

Display Type : Touchable face display

Pump Type : RS2559605 rotary pump

De-blocking Device : Automatic

Spray Chamber Material : Borosilicate glass

Contact Now

Automatic Lab Spray Dryer with 220V-480V Voltage and 3.5kw Power for Laboratory Use
Automatic Lab Spray Dryer with 220V-480V Voltage and 3.5kw Power for Laboratory Use
Product Introduction
Automatic Lab Spray Dryer with 220V-480V Voltage and 3.5kw Power for Laboratory Use

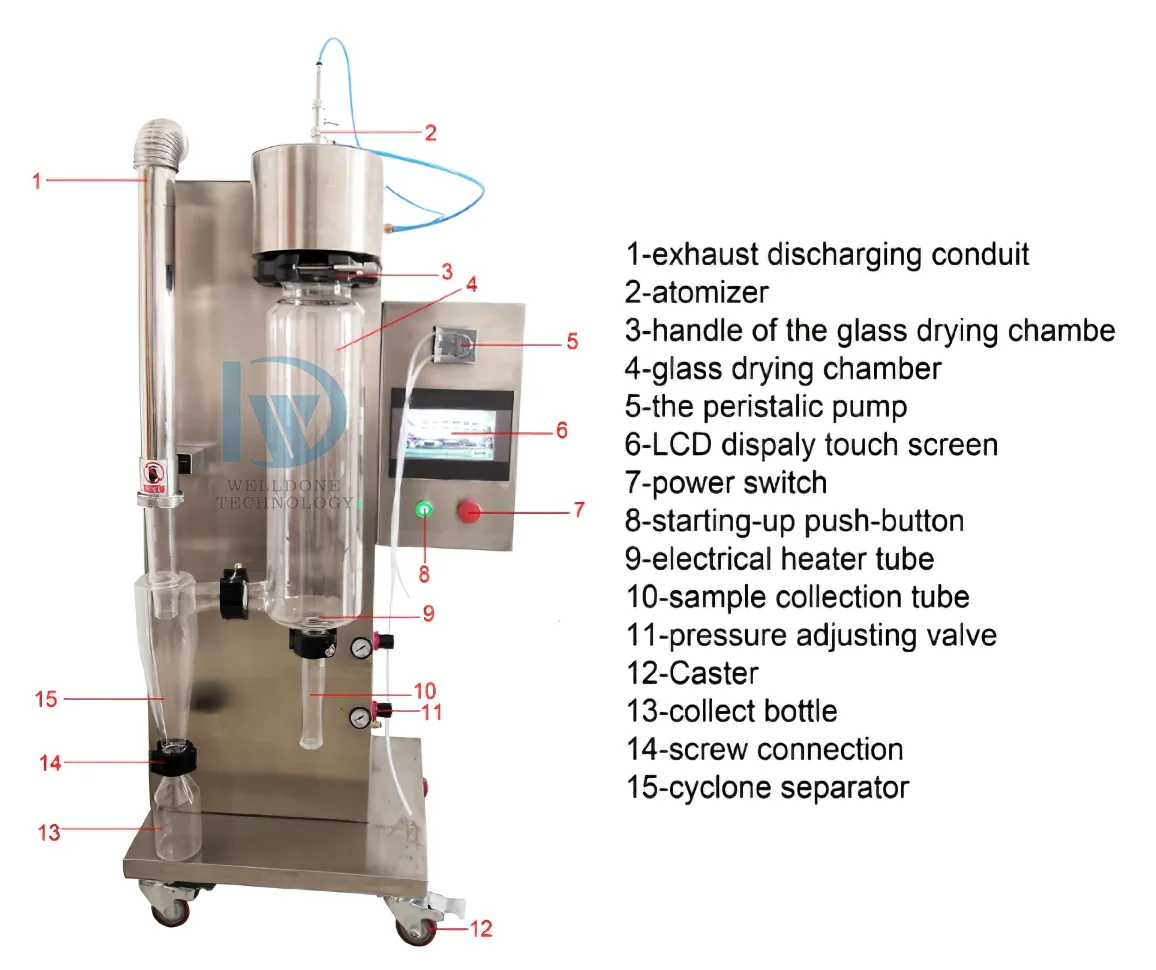

Description
Automatic Lab Spray Dryer with 220V-480V Voltage and 3.5kw Power for Laboratory Use

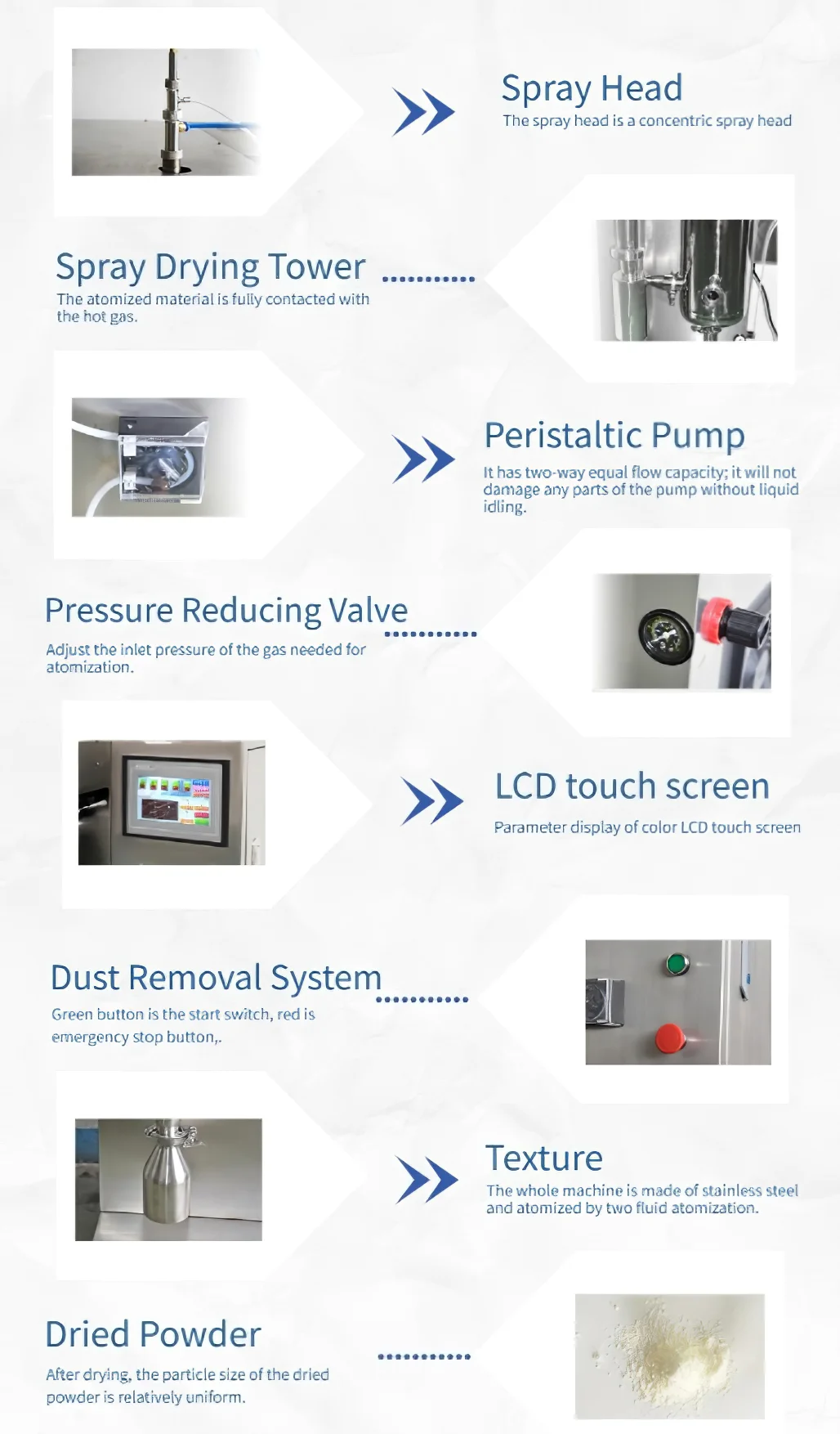

Feature
1 Special for lab research, min 20-30ml liquid to finish one test
2 All borosilicate glass for easy visual monitoring of process status
3 Spray chamber, cyclone separator, receiving talk are all made of borosilicate glass which can resist strong acid/alkali, high
temperature, it can work in a no-pollution and stable environment
4 Easy to clean and very simple to assemble and break down
5 The air compressor is no oil and don't pollute compress air, the sound is low than 50db and following the GMP understands.
6 Inlet/outlet temperature is accurate controlled by PID.
7 The unit is self contained and supplied complete and ready for immediate operation
8 Using screed touchable face display operation, control temperature, airflow volume, air pressure, pump speed and de-blocker
frequency
9 Product feeding with RS2559605 rotary pump, capacity is adjustable
10 Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled
Application
Automatic Lab Spray Dryer with 220V-480V Voltage and 3.5kw Power for Laboratory Use

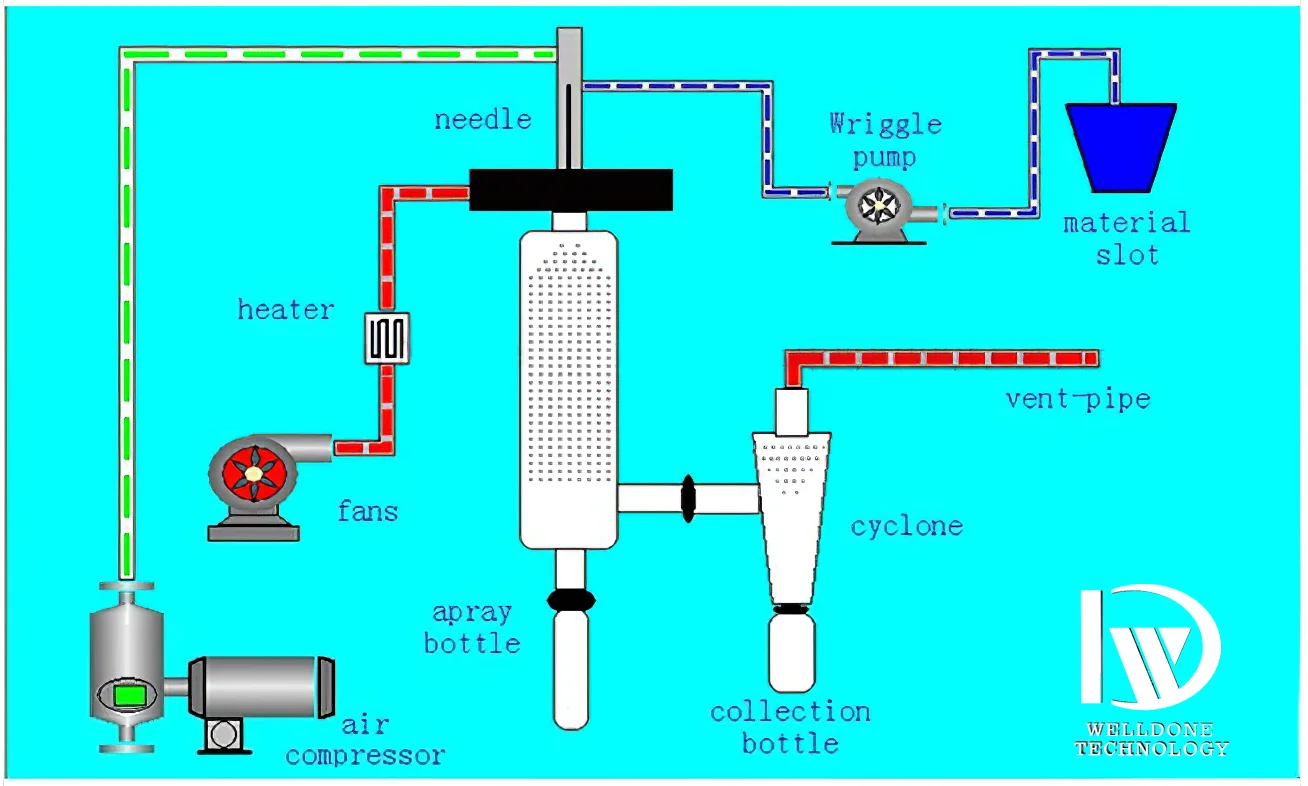

Working Principle
Automatic Lab Spray Dryer with 220V-480V Voltage and 3.5kw Power for Laboratory Use
Specification
item
value
Type
Spray Drying Equipment
Application
Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Condition
New
Place of Origin
China
Jiangsu
Brand Name
Welldone
Voltage
220V-480V (TBD)
Power
3.5kw
Dimension(L*W*H)
650×500×1550mm
Key Selling Points
Automatic
Warranty
2 years
Weight (KG)
120
Applicable Industries
Food & Beverage Factory, laboratory
Showroom Location
None
Marketing Type
Hot Product 2019
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
2 years
Core Components
Pump, Gear, Motor, Other
Evaporation Capacity(kg/h)
1
Heating Method
Electric Heating
Material
SUS304, SUS316L
Name
Lab Spray Dryer
Application
Laboratory
Model
SD
Key Selling Points
High Safety Level
Air Inlet Temperature Control:
30~300℃
Transport Package
Packed in Wooden Cases
Heating source
Electric
Core Components
PLC
Key words
Lab Dryer
Material
SUS304/ SUS316L
Company Profile
Changzhou Welldone Machinery Technology Co., Ltd is a professional dryers and granulators supplier based on real manufacturing factory which established in 2011. We are able to provide customized design based on different raw material. By working with senior engineers, Welldone Technology is also engaged in dryers technical researching & package solution integrating work. Free trial and wet material study are available for our customers.Welldone Technology has skilled and experienced after sales service team who can reach customers in short notice for providing professional installation, commissioning and training services Our machines are energy saving, environmental friendly, and high cost efficient. With good quality control, our typical users are across 50 countries all around the world such as USA, Canada, Spain, Singapore, New Zealand, Brazil, Japan, Korea, Indonesia, Malaysia, Vietnam etc. Welldone Technology is your reliable supplier in drying and granulating field! --Company Values: Obligation; Profession; Progressing; Efficiency; Customer Orientation
